80Watt integrated 395nm high power UV LED diodes for UV printer

الصين 80Watt integrated 395nm high power UV LED diodes for UV printer المزود

صورة كبيرة :  80Watt integrated 395nm high power UV LED diodes for UV printer

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: HHE
إصدار الشهادات: CE/ROHS/SGS/EN62471
Model Number: HH-80WB3CP810-M

شروط الدفع والشحن:

Minimum Order Quantity: 10pcs
الأسعار: negotiation
Packaging Details: anti-plastic bags package Box packing
Delivery Time: 7-30 working days according to order quantity
Payment Terms: Western Union, T/T, MoneyGram,paypal
Supply Ability: 65,000,000pcs per month
Contact Now
مفصلة وصف المنتج
current: 2800mA voltage: 30-36v
Chip array: 8P10S Chip material: InGaN/GaAsp
product name: 80w uv 395nm led lifetime: 50000h
quality warranty: 2years power: 80w
chip brand: Epistar/Epileds/Cree/Sanan etc.

shenzhen 80w integrated 395nm high power uv led diodes for uv printer





Specifications:



Electrical / Optical Characteristics at TA=25℃

Parameter

Symbol

Min

Typ.

Max.

Unit

Test Condition

Luminous Flux

Φ

200

220

240

Lm

IF =3500mA

Viewing Angle

2θ1/2

110

120

130

deg

IF =3500mA

Wavelength

WD

395

398

400

nm

IF =3500mA

Forward Voltag

vF

30

33

36

V

IF =3500mA

Reverse Current

IR





10

uA

VR = 5V



Absolute Maximum Ratings at TA=25℃

Parameter

Maximum Rating

Power Dissipation

80W

Peak Forward Current(1/10 Duty Cycle, 0.1ms

Pulse Width)

3500mA

Continuous Forward Current

2800mA

Derating Linear From 30℃

0.07mA/℃

Reverse Voltage

5V

Operating Temperature Range

-20℃ to + 80℃

Storage Temperature Range

-30℃ to + 100℃

Lead Soldering Temperature

[1.6mm(.063") From Body]

260℃ for 5 Seconds

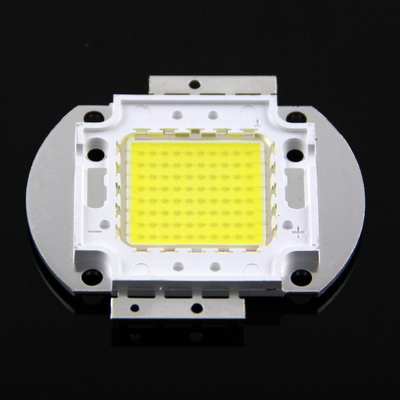

Product photos:


80Watt integrated 395nm high power UV LED diodes for UV printer



Main selling products:

High Power led: From 1 watt led to 400 watt Led in all colors.

Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,

piranha led, square led from 2mm to 10mm.

SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.

Led uv nail lamp: from 6w to 60w led uv nail lamp.

Led street light: from 50w to 330w fashion led street lights

Led grow light: all kinds of power and shape are available

Led aquarium light: all kinds of power available

Color available: red, green, blue, yellow, white, UV, IR, RGB, bicolor, etc. Available

Wavelength available: from 265nm to 940nm.





shipment and payment:

80Watt integrated 395nm high power UV LED diodes for UV printer





Hanhua company information:
Factory area: 5000 square meter
Total revenue:$ 13000000
Number of employee: 200
Company information: high standard dust free workshops and advanced entire automated electron system: ASM from USA, dispensing system from Japan, die bonding from Singapore  etc. Capacity: 65000000pieces per month from high power led, 85000000pieces per month from dip led, 95000000pieces per month from smd led, 10000pieces per month from integrated led.
